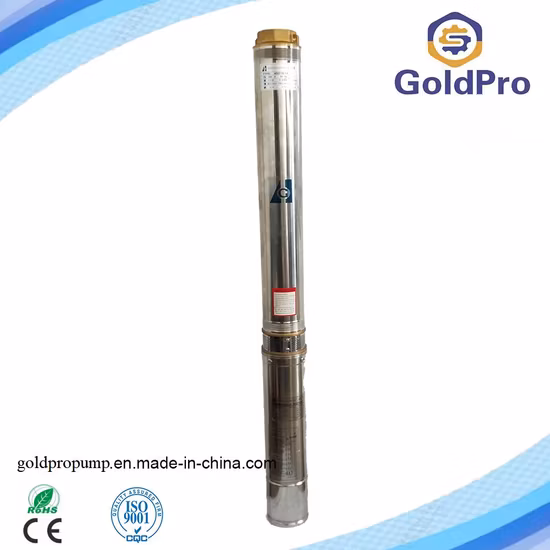

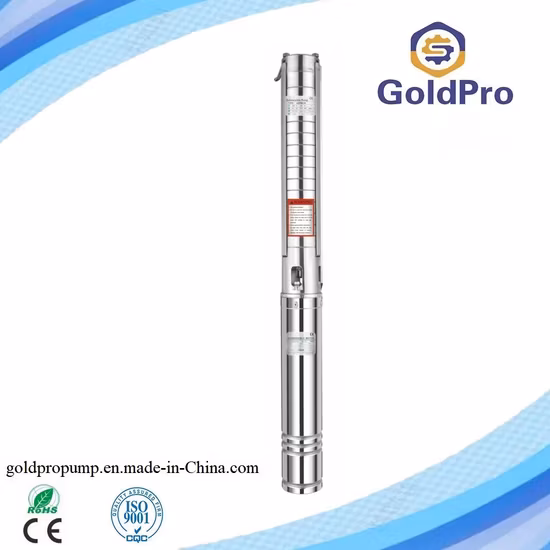

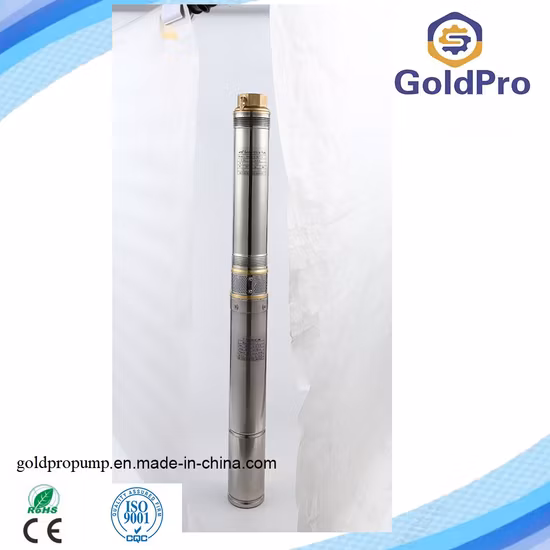

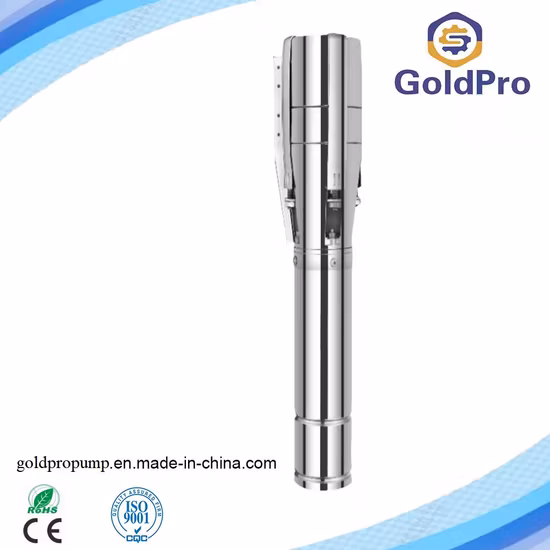

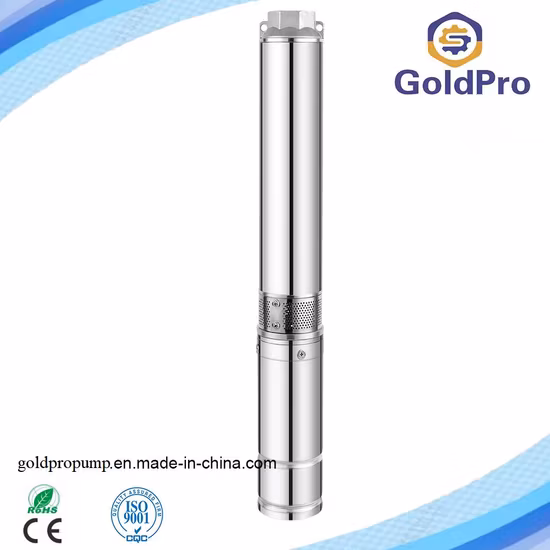

4sdm206

Basic Info.

Model NO.	4SDM206-0.37
Structure	Multistage Pump
Assembly	Pipeline Pump
Power	Electric
Start Up	Electric Pump
Type	Deep-Well Submersible Pumps
Application	Submersible Pump
Industry	Food Pumps
Media	Sea Water Pump
Performance	Automatic Pump
Theory	Centrifugal Pump
Outlet	Brass or Cast Iron
Oil Chamber	Brass or Cast Iron
Inlet	Brass or Cast Iron
Pump Casing	Stainless Steel
Motor	100% Copper Wire
Pump Type	Deep-Well Submersible Pumps
Transport Package	Strong Carton Packing with Export Standard
Specification	ISO9001, CE, MD, LVD, EMC, PCT, etc
Trademark	CHIMP or OEM
Origin	China
HS Code	8413709190
Production Capacity	1000PCS/Day

Product Description

IDENTIFICATION CODE
4SD
4: Well diamater: 100mm(4")
SD: pump name
M: Single motor( Three phase without M)
2: Capacity (m3/h)
06: Stage
0.37: Motor power code

APPLICATIONS
For water supply from wells or reservoirs.
For domestic use , for civil and industrial applications.
For garden use and irrigation.

OPERATING CONDITIONS
Maximum fluid temperature up to +35ºC
Maximum sand content: 0.25%
Maximum immersion: 100M
Minimum well diameter: 3.5"

MOTOR AND PUMP
Rewindable motor, full obturated screen motor
Three phase: 380v-415v/50hz or 60hz
Single phase: 220v-240v/50hz or 60hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standard

OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency viable

Model		P2		DELIVERY n=2850 1/min
1~ 220V/240V	3~ 380V/415V	kW	HP	Q	l/min	0	8	17	25	34	42	50	58	66	74
					m3/h	0	0.5	1.0	1.5	2.0	2.5	3.0	3.5	4.0	4.5
4SDM206-0.37	4SD206-0.37	0.37	0.5	H(m)		42	41	39	37	34	28	26	20	12	2
4SDM208-0.55	4SD208-0.55	0.55	0.75			56	53	51	49	46	37	34	26	15	2
4SDM210-0.75	4SD210-0.75	0.75	1.0			70	68	64	61	57	47	43	33	19	3
4SDM213-1.1	4SD213-1.1	1.1	1.5			91	87	83	79	74	60	55	43	25	4
4SDM218-1.5	4SD218-1.5	1.5	2.0			126	119	115	109	103	83	77	59	34	5
4SDM222-2.2	4SD222-2.2	2.2	3.0			154	145	140	132	125	101	94	73	42	6
4SDM230-3.0	4SD230-3.0	3.0	4.0			210	199	191	183	171	138	128	99	57	7

FAQ

Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year!

Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
